Tools and Fixtures

Advanced dental milling solution

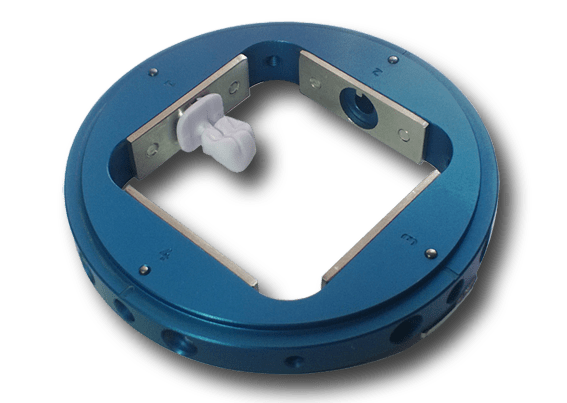

This kind of fixture is able to fit up to four stocks in lithium disilicate, ceramics, Ultimate, Zirconium and PMMA, compatible with the standard machines clamping units for standard disks milling.

The fixtures diameter is 98mm, with a clamping thickness of 10mm. It is made of aluminium with stainless steel coupling parts to lock the stocks.

This fixture makes it possible to grind lithium disilicate or ceramics blocks. Together with the fixture, it is necessary to have right tools (diamond grinding), then to activate the specific strategies dedicated to this kind of machining and finally to have a machine with emulsion tool cooling.

For some machine types (that are able to manage the references), the fixture is available with the specific components for the correct installation (e.g. Roland).

In order to work on preformed blocks as Priti®Crown, it has been assigned the position 4 of this equipment. In fact the first three positions have a precise insertion of the plug inside the 6mm hole, the position 4 instead does not have the inner plug so that it is possible to enter these blocks. In any case, even in the absence of this internal plug, the accuracy and the proper tightening of all types of blocks are guaranteed also in position 4.

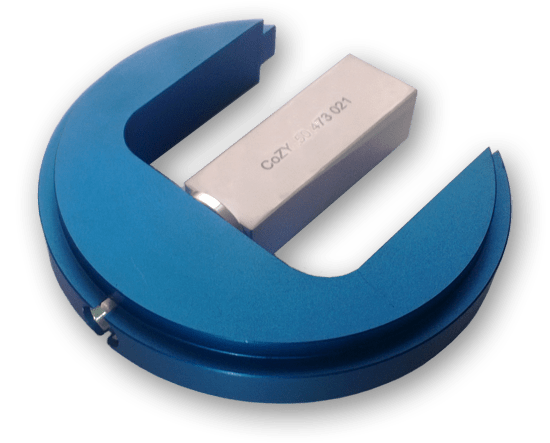

We can offer a new fixture able to fit up to a stock of CEREC system, compatible with the standard machines clamping units for standard disks milling.

The fixtures diameter is 98mm with a clamping thickness of 10mm.

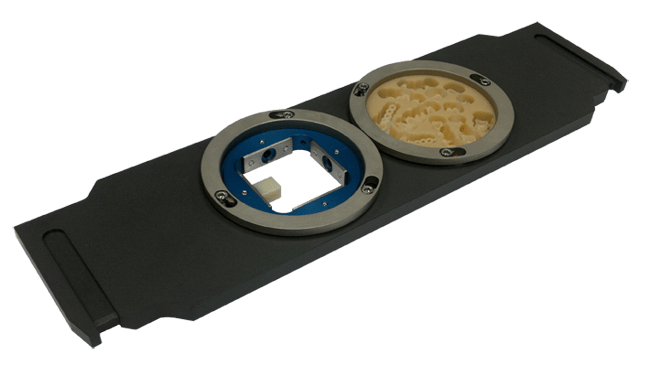

A new fixture compatible with Kavo machine is available. It includes two different housings for standards 98mm diameter disks.

This fixture is made of aluminium with a special surface treatment that let it be very strong, with stainless steel fixing.

In these two housings, it is possible to place disks of any material and brand.

It is also possible to place the fixture used to machine the lithium disilicate, ceramics, Ultimate, Zirconium and PMMA stocks.

The combination between this fixture and the software, allows to optimize the machine zero and to use any kind and brand of tools.

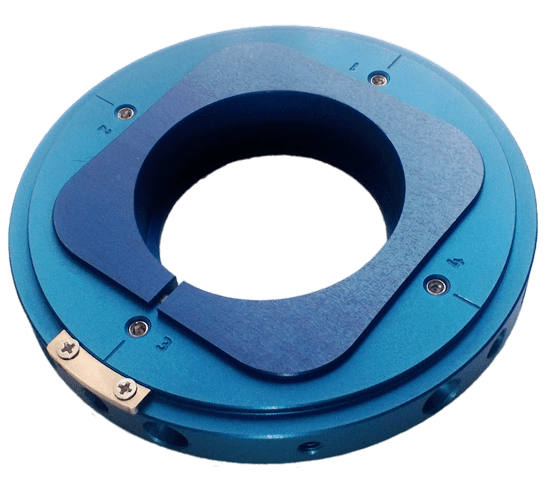

A new additional fixture is available to mount the 50mm disks of Hydroxy Apatite. This fixture is added to the one used for lithium disilicate, ceramics, Ultimate, Zirconium and PMMA.

With a single fixture, it is possible to work on mutltiple materials that are available.
