RhinoNC

CAM software solution integrated into Rhinoceros

Release Notes

2021

07/20/2021
(30) New 3D complete finishing strategy with parallel passes or constant cusp.

07/20/2021
(29) New automatic management of approach in 2D pocketing strategy.

07/20/2021
(28) New option "Stock layer" in the 3D roughing strategy.

03/22/2021
(27) New feature of change and menage the sequence of the strategies in the RhinoNC process.

03/22/2021
(26) New option to manage automatically the safaty plane value in the surfaces strategies.

03/22/2021
(25) New graphic process manager in the RhinoNC tree machining.

03/22/2021
(24) New option "Intermediate slices" in Roughing surfaces machining strategy.

12/31/2020

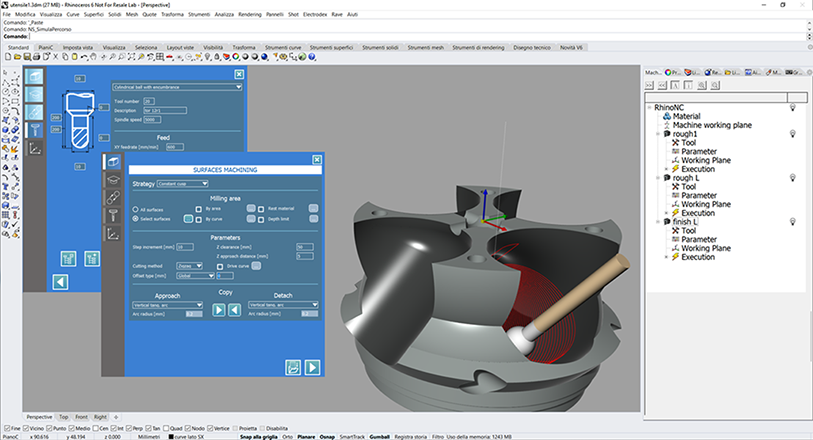

(23) Available the new Wizard interface to create all machining strategies.

12/31/2020
(22) New option in curve machining module: now is possible to menage with custom feed all the lead-in and lead-out movement.

12/31/2020
(21) New rest material manager in the surfaces module.

12/31/2020
(20) New time machining windows version.

06/01/2020
(19) RhinoNC is available with 2 new languages: Chinese and Korean.

06/01/2020
(18) New option in curve contouring strategy: it is possible to insert an angle between the steps on the deep.

06/01/2020
(17) New collision check in curve contouring strategy: it is possible to check all kind of approach.

06/01/2020
(16) New option in drilling strategy: is possible to select the movement between the deep step with rapid or work feed.

06/01/2020
(15) New rapid movement in drilling cycles; you can select if the rapid movement between 2 holes change in only one position or in different points

06/01/2020
(14) New automatic recognition of diameter in drilling strategy. Now is possible to recognize also in a mesh geometry.

01/01/2020
(13) New workplanes management. New dialog with the possibility to creation multiple Workplanes unchain to Rhinoceros workplanes.

01/01/2020
(12) New configuration windows. New management of layout and strategies configuration dialog.

01/01/2019

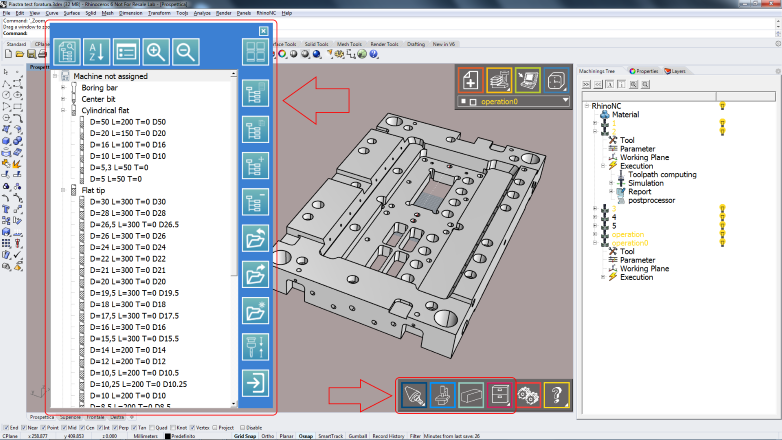

(11) New Archives. New management of materials, strategies and tools archives.

01/01/2019
(10) New workplane orientation. New wizard management with possibility to handle different kinds of workplane orientation.

01/01/2019
(9) Automatic drilling. Possibility to manage the drilling cycles with automatic recognition of geometry.

01/01/2019
(8) Manual drilling. New strategy to define a drilling setup.

01/01/2019
(7) New Wizard windows. New wizard windows to guide the making of all CAM strategies.

01/01/2019
(6) New rest material simulation. Possibility to manage the toolpath step by step in rest material simulation and to show/hide the tool.

01/01/2019
(5) New wireframe simulation. Possibility to manage the toolpath step by step in wireframe simulation and to show/hide the tool.

01/01/2019
(4) New configuration bar. Added new bar with the command to manage the archives, work rules, configuration and documentation files.

01/01/2019
(3) New machining tree. New structure to insert , manage and show the strategies with possibility to change the machining parameters.

01/01/2019
(2) New machining bar. Added new bar with command to create, simulate, post processing and reporting the strategies. Possibility to manage also the list of strategies.

01/01/2019
(1) New ghaphics interface. New structure to menage all CAM strategies.
