Pyramis

Dental 3D printing software

ID TAG

Open system for the management of 3D printing

Stay up to date with the latest features and releases of Pyramis.

2023

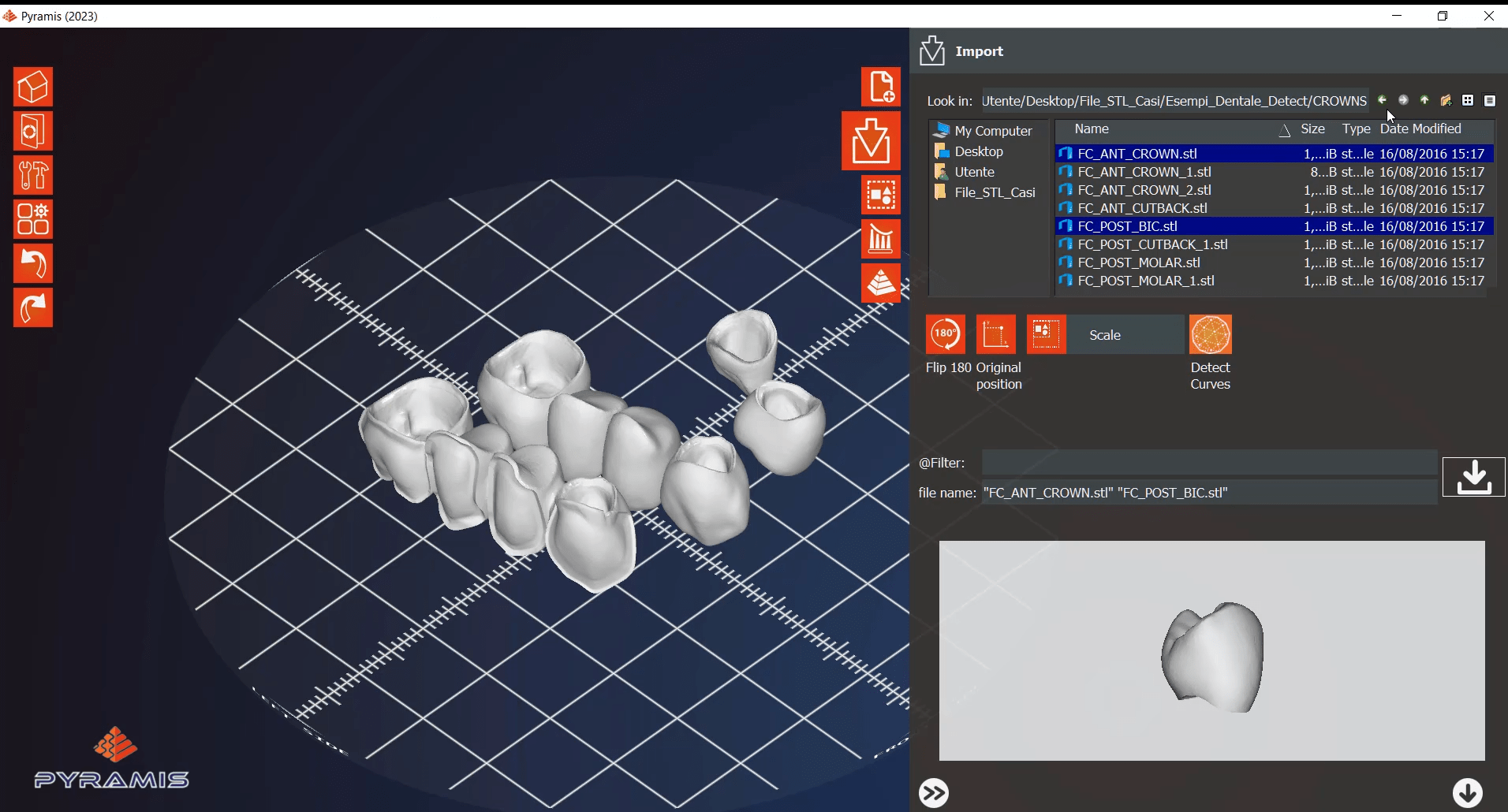

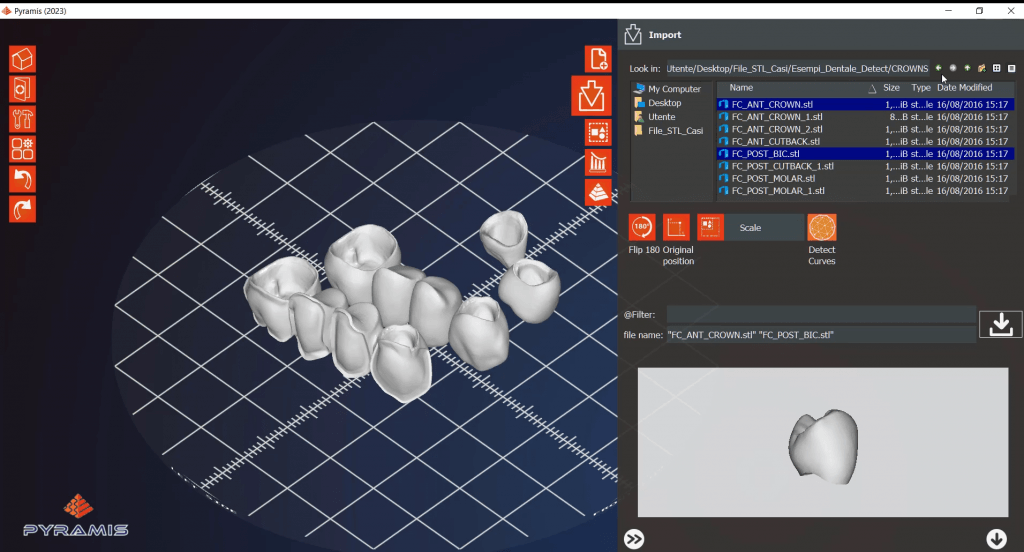

NEW DETECT CURVES OPTION

Thanks to this new option, dental objects are now automatically detected in Pyramis; it is no longer necessary to manually pre-identify the object type. This option currently works with the following objects: Copings, Crowns, Framework bridge, Anatomical bridge, Abutment bridge, Anatomical abutment bridge, Bars, Abutment, Hybrid abutment, Anatomical abutment. For all other object types, the “Detect Curves” option must be deselected at import.

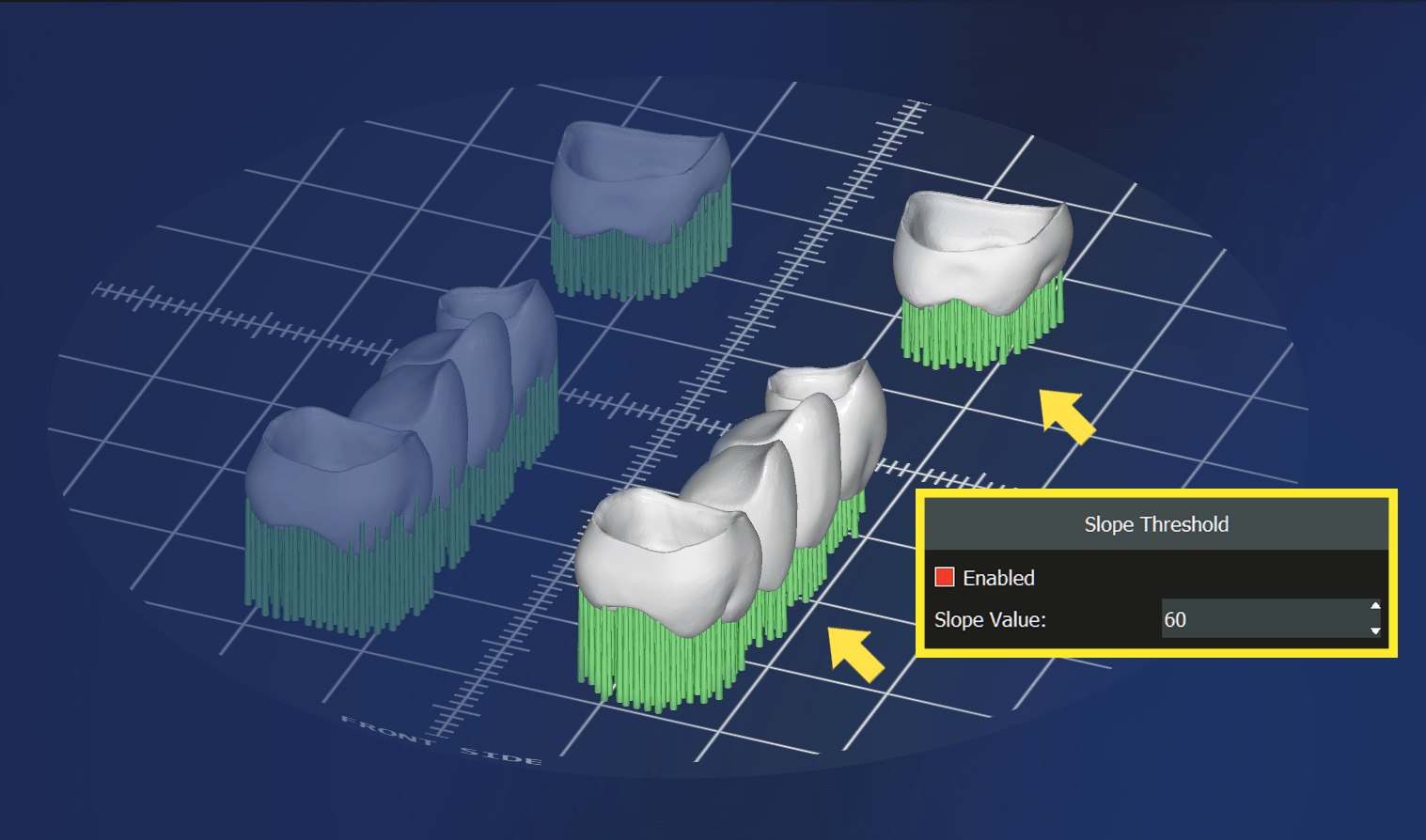

NEW OPTION SLOPE THRESHOLD FOR SUPPORT PLACEMENT

With the new function for optimisation of support placement, it is now possible to disable the angle threshold of all surfaces identified in the threshold definition range, so that supports are not placed on them, especially on those surfaces that are inclined enough to be self-supporting.

With the new function for optimisation of support placement, it is now possible to disable the angle threshold of all surfaces identified in the threshold definition range, so that supports are not placed on them, especially on those surfaces that are inclined enough to be self-supporting.

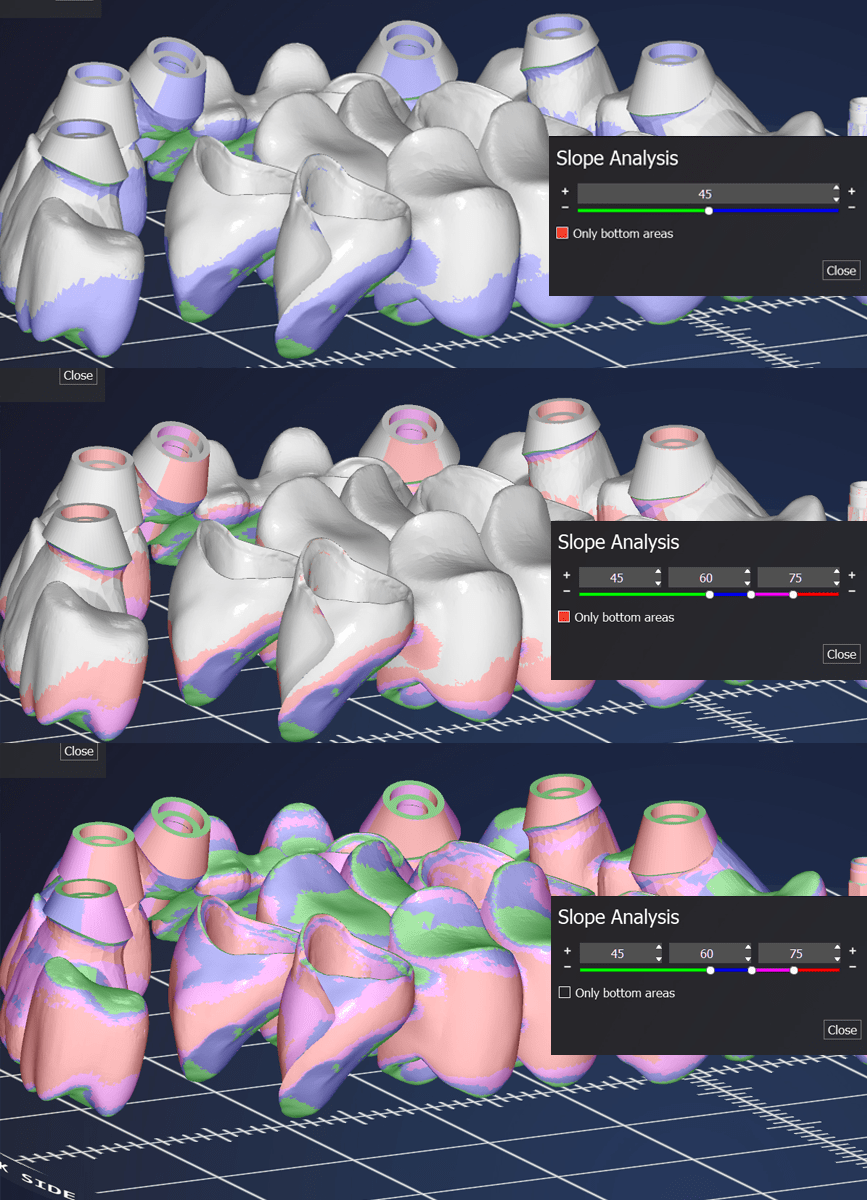

NEW SLOPE TOOL VISUALISATION

A new slope tool is now available to display the different slopes of an object’s surface; by default, 2 slopes are displayed, but up to 5 different thresholds can be added.

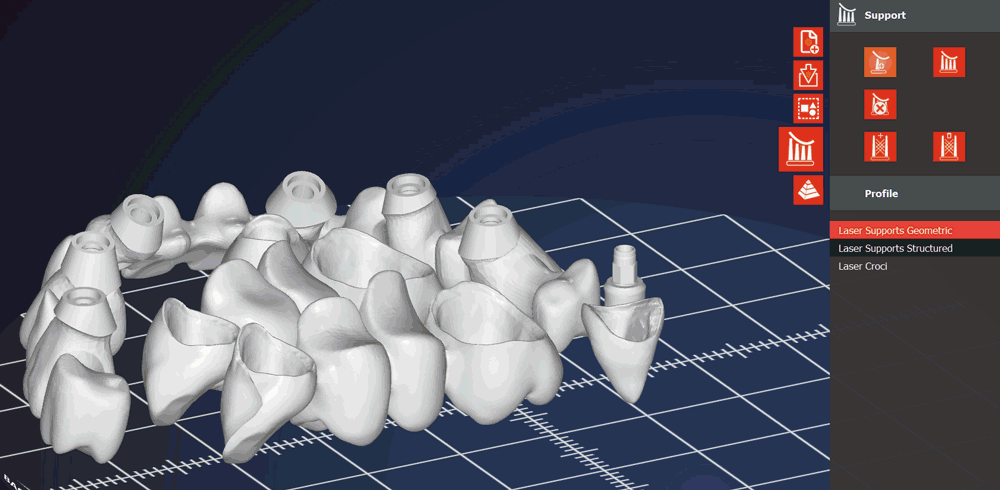

VISUALISATION TOOL ON MANUAL SUPPORT POSITIONING

The “Slope” option is also automatically activated during the manual positioning of the supports

2022

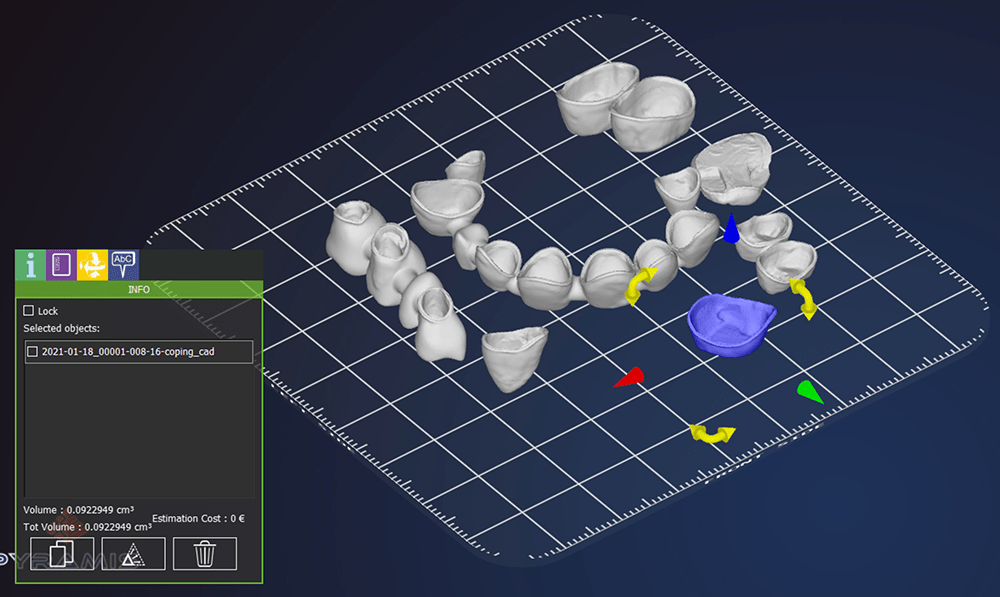

LOCK AFTER NESTING

This function allows you to select objects that have already been imported and lock them into position on the plate. This will prevent the repeated placement of objects already on the plate when adding new objects.

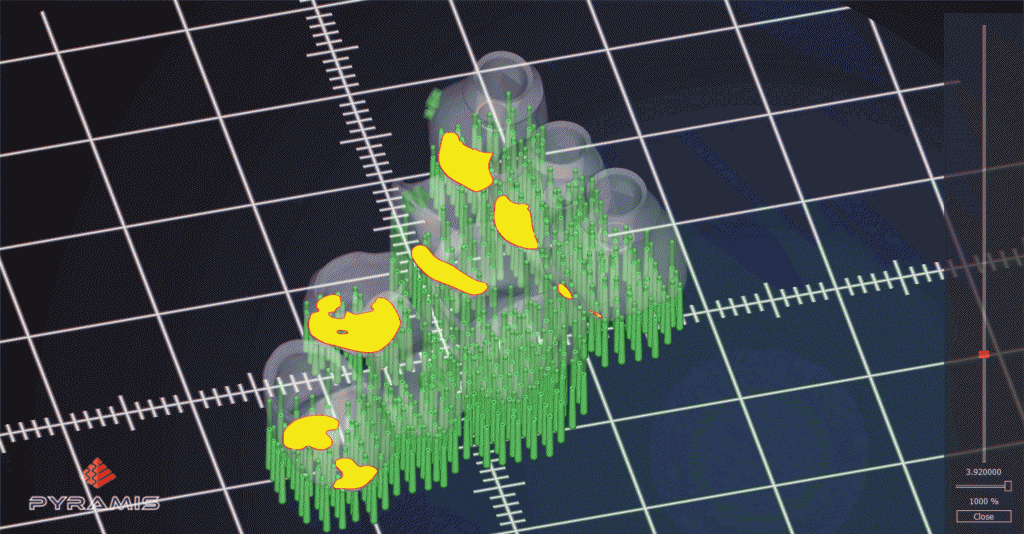

LAYER SKIP

The software generates a laser path made of alternate layers which highly reduce job execution time.

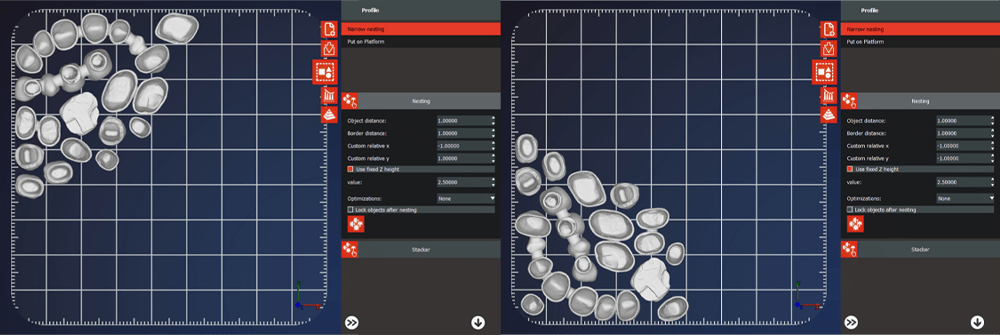

NESTING START POSITION

You can define the starting point of nesting according to your preferences.

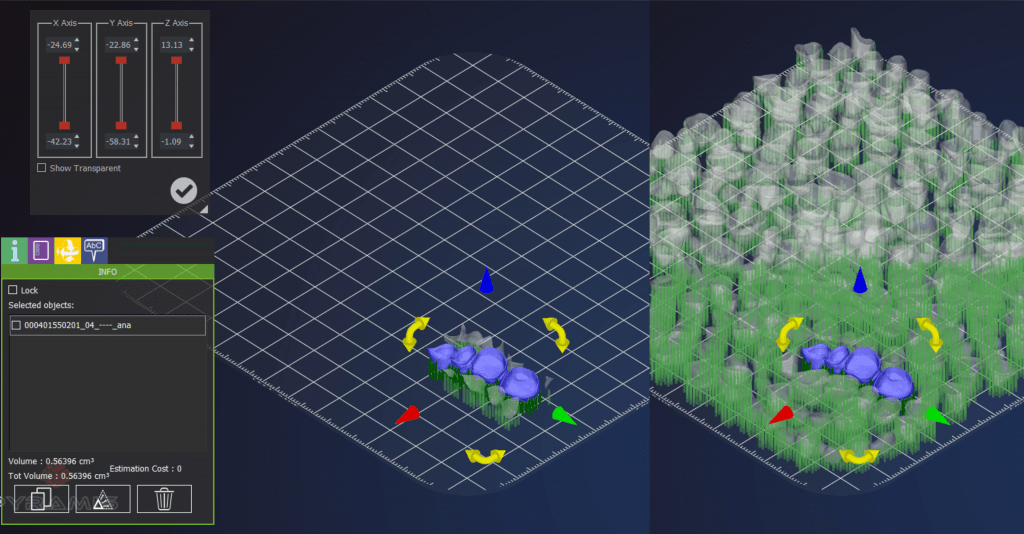

VISIBILITY TOOL

This new function allows you to select and act on a single object placed on the plate. It highlights only the selected object and fades out the rest.

2021

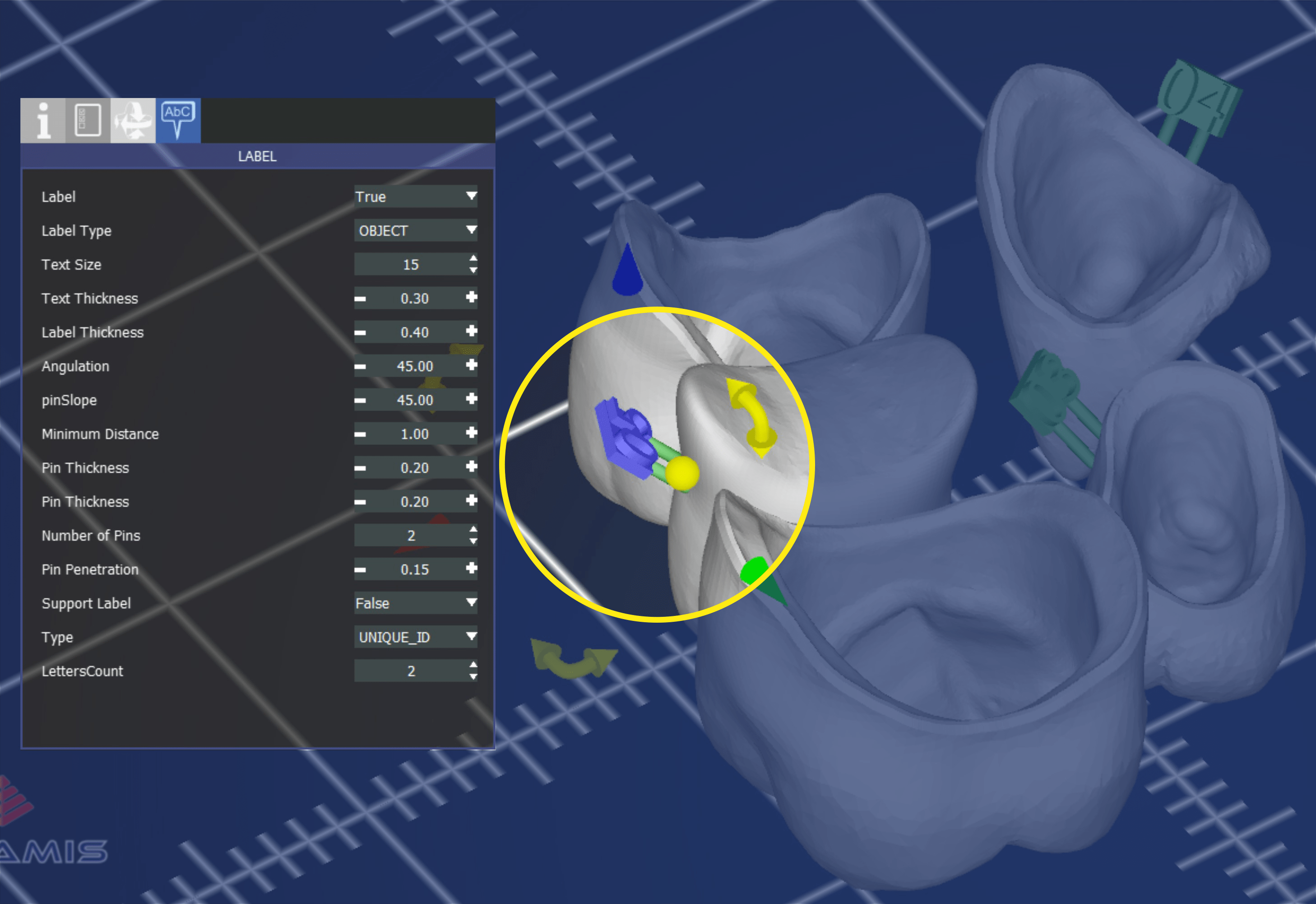

ID TAG

This feature is very useful when importing multiple objects onto the plate. The software allows for the positioning of a TAG to help identify each individual object.

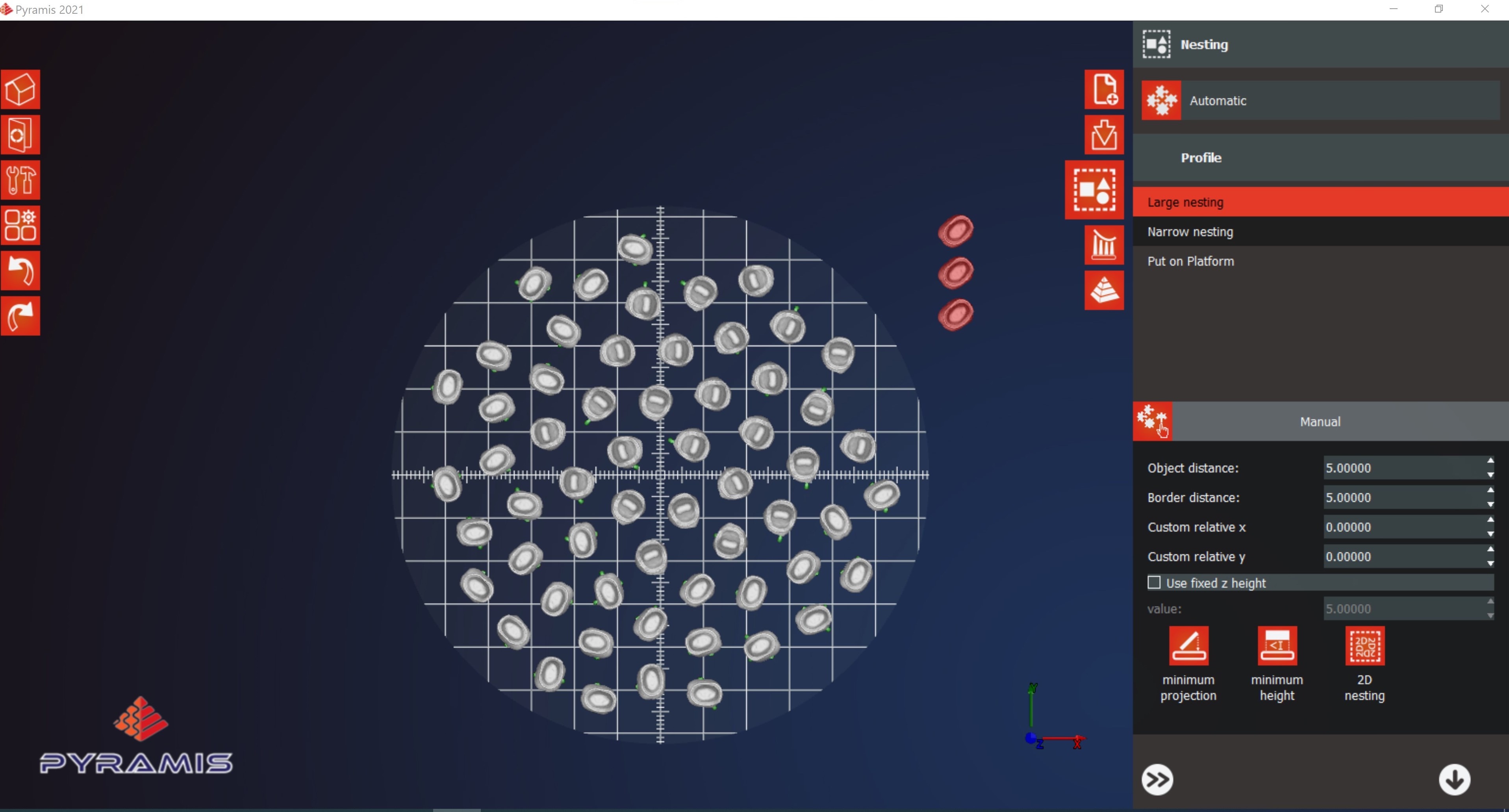

NESTING ALGORITHM

The new, more accurate, faster nesting algorithm also allows you to select from which area of the platform to start placing objects, and takes into account the size of any equipment.

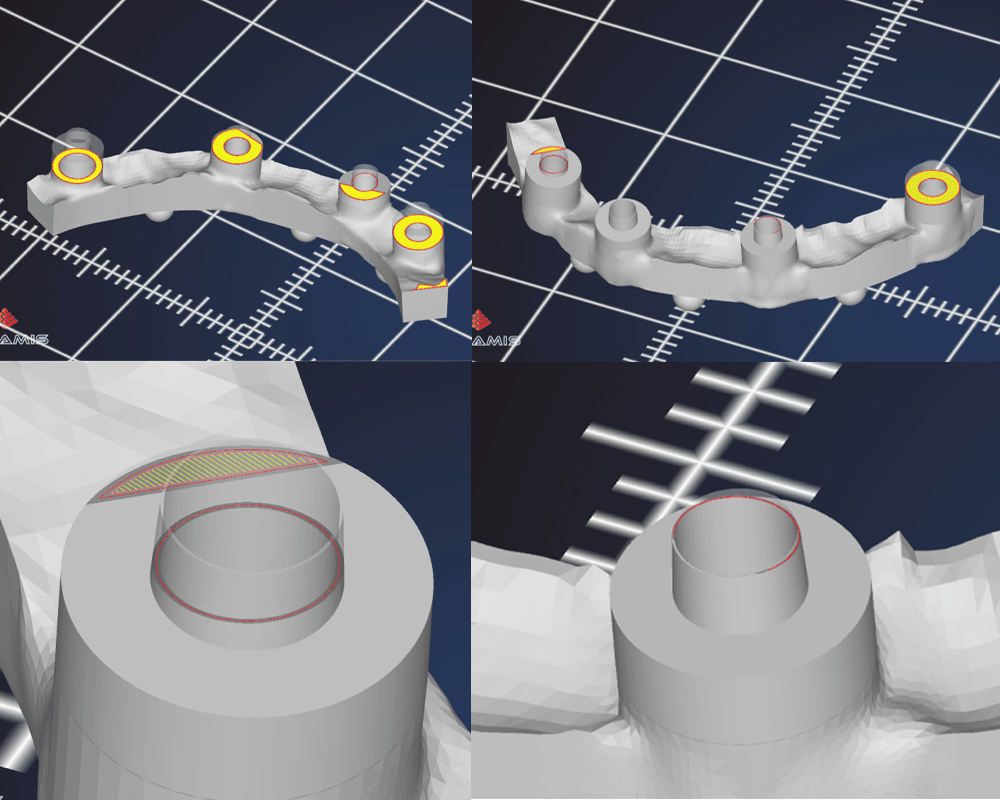

MICRO WALL

The software can recognize and print elements with wall thicknesses of microscopic sizes (down to hundredths of a millimeter). This will increase the accuracy of printed objects.

BASE PERFORATION

A new material saving method has been implemented into Pyramis called Base Perforation. Base Perforation is available in a variety of shapes that suit objects to be printed and it features host pins only on filled spaces.

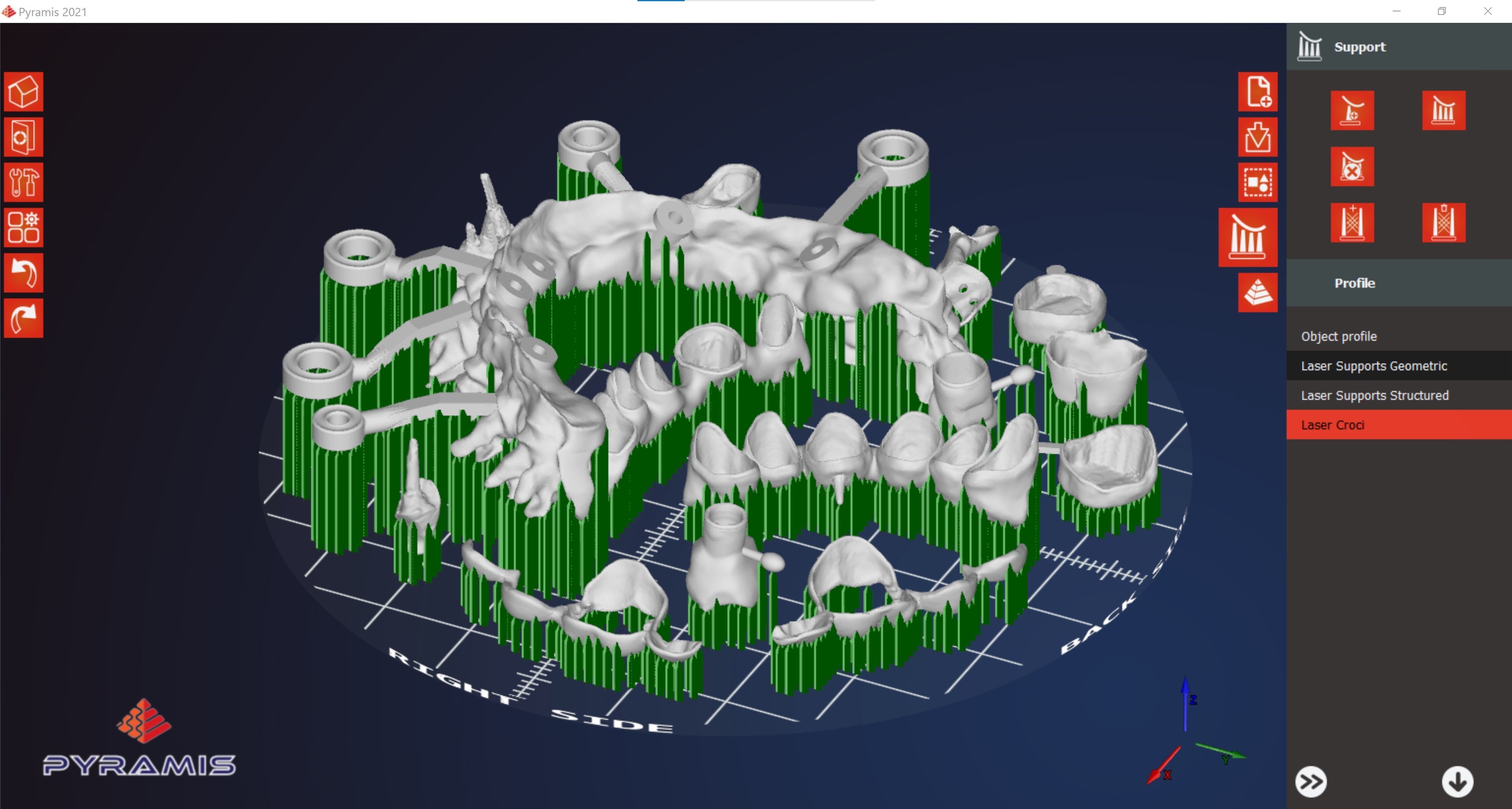

CROSS SUPPORTS

The cross supports (or called “without volume”) used exclusively for machines with laser technology, allow to have objects with supports made by a single laser step, easily detachable from the object at the end of the printing process.
